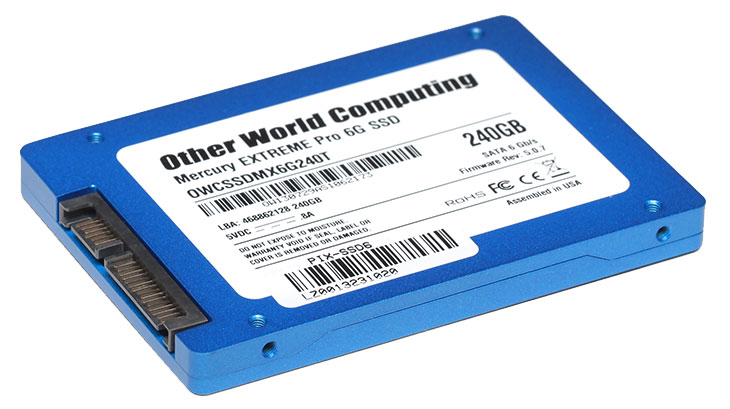

PIX-SSD6
The Sound Devices PIX-SSD6 240GB SSD for Pix 220i/240i/260i is a 2.5" Serial-ATA 9.5mm SSD. This is an off the shelf Other World Computing SSD that Sound Devices pre-formats to the native file system of the Pix 220i/240i/260i, so the SSD is ready to go out of the box. It is equipped with a SandForce 2281 Processor and DuraClass technology and offers sustained reads up to 559 MB/s and writes up to 527 MB/s. 240 GB capacity. 2.5" SSD approved for use with the PIX 220i, PIX 240i, PIX 250i, and PIX270i Video Recorders. Preformatted exFAT. No shim required for use with PIX-CADDY2.
Main Benefits
- 2.5" SATA
- 9.5mm Solid State Drive
- Formatted in a Sound Devices Pix Unit
- SandForce 2281 Processor
- Duraclass Technology
- Instant Data Access System
- RAISE Technology / ECC Protection
- Intelligent Read Disturb Management
- Advanced Intelligent Recycling
- Compatible with Notebooks & Desktops
Description
In addition to RAISE (Redundant Array of Independent Silicon Elements) technology, the Solid State Drive comes with ECC protection that protects the data on your hard drive and retains it for a long time on the hard drive. The Mercury EXTREME Solid State Drive features intelligent block management, while the wear leveling system evenly distributes the data over the hard drive. An intelligent read disturb management spreads active read/write, eliminating data corruption.
Advanced intelligent recycling ensures space management by re-writing the data over the SSD, and Durawrite extends the quality of the hard drive. It supports 240 GB useable capacity with a total flash memory of 256 GB, additionally 16 GB space is allocated for real time data redundancy and error correction, and is compatible with Notebooks and Desktops.
Pre-Formatted
- The SSD is pre-formatted to the exFAT file system using a PIX unit
- 2.5" SATA 9.5 mm solid state drive with 240 GB storage capacity
- Equipped with a SandForce 2281 Processor and DuraClass technology
- Offers sustained reads up to 556 MB/s and writes up to 523 MB/s
- RAISE (Redundant Array of Independent Silicon Elements) technology and ECC protection - protects the data on your hard drive
- Intelligent block management and wear leveling system evenly distributes the data over the hard drive
- Intelligent read disturb management spreads the active read/write, eliminating data corruption
- Advanced intelligent recycling ensures space management by re-writing the data over the SSD
- No moving parts
- Highly rugged storage solution - offers faster system response
- 7% over provisioned redundancy for laptops
- Supports a total flash memory of 256 GB, additionally 16 GB space is allocated for real time data redundancy and error correction
Tech Specs
Controller |
SandForce 2281 Series Processor with 7% over provisioning |
Form Factor |
Standard 9.5 mm 2.5" |
Interface |
SATA 6 Gb/s, 3 Gb/s & 1.5 Gb/s supported, SATA 3.0 compliant |
Capacity |
240 GB useable capacity Total flash memory components - 256 GB 16 GB allocated to real-time data redundancy & error correction |
File System Format |
exFAT |
NAND |
Asynchronous Tier 1/Grade A 2X-nm NAND flash storage |
SMART attributes |
Standard |
RAID Support |
Qualified for single drive and multiple drive production workstation RAID 1/SPAN usage |
RoHS Compliant |
Yes |
Native Command Queuing |
Up to 32 commands |
Data Reliability |
ECC Recovery: Up to 55 bytes correctable per 512-byte sector |
Security |
Chip based data encryption: 256-bit & 128-bit AES-compliant |
Nonrecoverable Read Errors |
Less than 1 sector per 10^16 bits read |
Sustained Reads 6Gb/s |
559 MB/s |
Sustained Writes 6Gb/s |
527 MB/s |
Sustained Reads 3Gb/s |
284 MB/s |
Sustained Writes 3Gb/s |
266 MB/s |
Read Incompressible Data Rate |
479 MB/s |
Write Incompressible Data Rate |
282 MB/s |
Random 4K Read |
Up to 60,000 IOPS |
Random 4K Write |
Up to 60,000 IOPS |
Read Latency |
less than 0.1 ms |
Write Latency |
less than 0.1 ms |
Temperature |
32 - 158° F / 0 - 70° C (operating temperature) -67 to 302° F / -55 to 150° C (non operating temperature) |
Idle |
0.0 bels (typical) |
Seek |
0.0 bels (typical) |
Active |
Less than 3000 mW (3.0 W) expected maximum draw |
Idle |
Less than 1200 mW (1.2 W) |
Height |
0.372" / 9.45 mm (maximum) |
Width |
2.758" / 70.06 mm (maximum) |
Length |
3.941" / 100.12 mm (maximum) |
Weight |
0.176 lb +/- 2.82 oz (80 grams +/- 2 grams) |
