RTW

TM3S

rtw tm3 smart
rtw tm3 smarttm3s in usetm3stm3s 2


TM3 Smart - TM3 with full feature set:

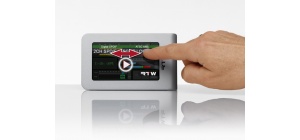

4.3 inch Stereo and 6-channel TouchMonitor as desktop unitwith display unit (capacitive touch screen), remote interface box (2 m), and mains adapter.Analog Stereo RCA input (150 mV to 25 V unbalanced and adjustable) or 25-p Sub-D (balanced +4/+6 dBu), digital in-/output via RCA (SPDIF) and AES3 in-/output via 25-p Sub-D.USB 2.0 device interface, GPIO interface, 24 V DC connectorStereo software: Peak, True Peak, correlation, Loudness (EBU R128, ITU-R BS.1770-3/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, customer), LRA, SPL, Dialnorm.Also included: Software upgrade to enable 6-ch. Mode.Moving Coil instrument for the display of needle instruments for up to 2-ch. stereo with different scales (PPM, VU, Loudness) and modes. Timecode Reader with display of an external analog or digital source. Loudness Chart instrument.Comprehensive set of presets, easy recall.Optional: External PC software (Devicer DC1) for preset confi-guration, 2U mounting (with TM3-2U)

For 19"/2U rack mounting, the 2U mounting option TM3-2Ushall be ordered simultaneously (Order no.: TM3S + TM3-2U)

Main Benefits:

  • 4.3“ Touch screen for vertical or horizontal use
  • Flexible display layout with scalable instruments
  • Separate interface box with audio I/O, USB, GPIO
  • Audio: analog balanced or unbalanced, S/PDIF, 3 x AES3
  • Stereo/6-channel operation
  • Moving Coil instruments
  • Loudness Test Time Control
Call for pricing
