RTW

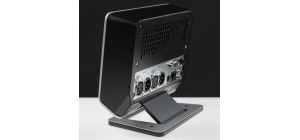

TouchMonitor TMR7S Smart

rtw tmr7 smart
rtw tmr7 smartrtw tmr7 smart rear wideanglertw-tmr7-smart


TouchMonitor TMR7 Smart:

4-ch. main unit with 7" 16 : 9 TFT resistive touch screen in table-top frame, with table-stand and mains adapter, 2 digital AES3 inputs (XLR-F), 2 digital AES3 outputs (XLR-M), RJ-45 Ethernet, 2 x USB 2.0,GPIO, 24 V DC (Binder 710) connectors. Software: 4-ch. Peak, True Peak, Loudness (EBU R128, ITU-R BS.1770-3/1771-1, ATSC A/85, ARIB, OP-59, AGCOM, CALM Act, Leq(M), TASA,SAWA), LRA, Moving Coil, dual audio vectorscope, RTA, correlation, SPL, Chart.(No VGA, no Gain Reduction, no Logging, no enhancements)

Main Benefits:

  • Easy and fast touch screen control with comfortable onscreen help
  • Highly flexible screen layout options with scalable instrument
  • Powerful DSP platform for parallel display of multiple instruments
  • 2 AES3 audio inputs and 2 outputs via XLR (4 channels)
  • Ethernet/LAN, USB, and GPIO ports
  • 7" touch screen 16 : 9 TFT
  • Table-top unit and mains adapter
  • Integrated Smart software package
Call for pricing
