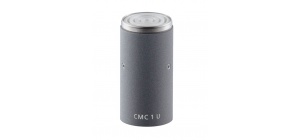

The CMC 1 is a new, small Colette microphone amplifier, about one-third the size and 40% lighter than the CMC 6. It is compatible with all components of the Colette system and can be used in place of the CMC 6 without compromise, for all applications in which the size and weight of the microphone play a role.
Main Benefits
- Complete alternative to the renowned CMC 6
- Fully compatible with all existing MK capsules and Colette active accessories such as the CUT 60 and RC tubes
- Suitable mounting accessories are already available, such as the CINELA E-OSIX-CMC1U and the Rycote INV-6 elastic suspensions.
- High maximum SPL: 135 dB-SPL with the MK 4 (0.5% THD or less)
- Very low current consumption: 2.0 mA at 48 Volts
- Operates on 48 V or 12 V phantom power
- Very high immunity from RF interference with the SCHOEPS RFI Shield
Description
At SCHOEPS, “uncompromising miniaturization” means that the electrical characteristics of the CMC 1 are equal to, or even better than, those of the CMC 6. Through modern electronic design, these outstanding electrical properties have been achieved:
- High maximum SPL: 135 dB-SPL with the MK 4 (0.5% THD or less)
- Very low current consumption: 2.0 mA at 48 Volts
- Operates on 48 V or 12 V phantom power
- Very high immunity from RF interference with the SCHOEPS RFI Shield
Tech Specs
| Frequency range |
20 Hz-20 kHz
|
| Sensitivity |
see corresponding capsule
|
| Maximum output voltage |
1,8 V (5 dbV) with 1 kΩ load
|
| Maximum sound pressure level (THD < 0.5 %) |
135 dB-SPL (P48) with MK 4
131 dB-SPL (P12) with MK 4
|
| Low cut filter |
20 Hz, 12 dB/oct
|
| Output impedance |
50 Ω +/- 1 Ω (8 Hz - 50 kHz)
|
| Minimum recommended load impedance |
1 kΩ
|
| Common mode rejection ratio (at 1 kHz) |
> 55 dB
|
| Maximum cable length |
> 400 m / ~1300 ft
|
| SCHOEPS RFI Shield |
Yes
|
| Powering standard / Valid range |
P48 / 30-52 V
P12 / 11-13 V
|
| Current consumption |
2 mA (P48)
3 mA (P12)
|
| Output |
XLR-3M, analog, 1 channel
|
| Length |
39 mm / ~1.5"
|
| Diameter |
20 mm / 0.8"
|
| Weight |
36 g / 1.3 oz
|
| Surface finish |
matte gray (g) or custom color
|
Application
Alignment of vertical capsules with the CMC 1/6:
The CMC 1 U can be used in many suspensions (e.g. OSIX) that have a rigid orientation of the XLR connector and thus the amplifier. Also in the compatible MS and dual MS setups (for example, Cyclone), the alignment is fixed. As a result, the microphone cannot be rotated arbitrarily in such a suspension. For axially aligned capsules like the MK 4 this is not important, but a vertical capsule like the MK 8 has to be aligned radially.
In such cases, this accessory helps:
No. 800540: O-ring for radial alignment of a MK capsule. This O-ring is placed on the thread of the amplifier and makes the MK capsule permanently stable in any orientation. The O-ring is included with the MK 8 and all other vertical capsules (MK 4V, 41V) and can also be ordered separately.
